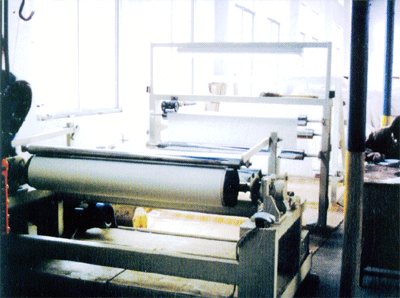

Fabric rewinder

Equipment characteristics:
Fabric rewinder is used to rewind, coil and inspect the raw 7628, 2116 and imitation 7628 fibergalss fabric. It is composed of pay-off reel, guiding rolls and down coiler. It uses the AC frequency conversion technology and high-precision automatic steering device, so it winds the fibreglass fabric neatly and handsomely.
Maximum coiling diameter: 840mm (to be designed as per the users requests)
Maximum coiling length: 2500m
Coiling speed: 040m/min
Correcting accuracy: 1.5mm
Applicable coil axle: inflatable expanding axle (to be provided by the users)
Applications: rewinding, coiling and inspecting of fiberglass fabric
